Access Control Card Readers
A card reader is a data input device that reads data from a card-shaped storage medium. The first were punched card readers, which read the paper or cardboard punched cards that were used during the first several decades of the computer industry to store information and programs for computer systems. External devices that can read a Personal identification number (PIN) or other information may also be connected to a keyboard (usually called "card readers with PIN pad").
This model works by supplying the integrated circuit on the smart card with electricity and communicating via protocols, thereby enabling the user to read and write to a fixed address on the card. We provide the access card reader systems with the best value solution to meet limited budget for the residential home, commercial office building or industrial factory.

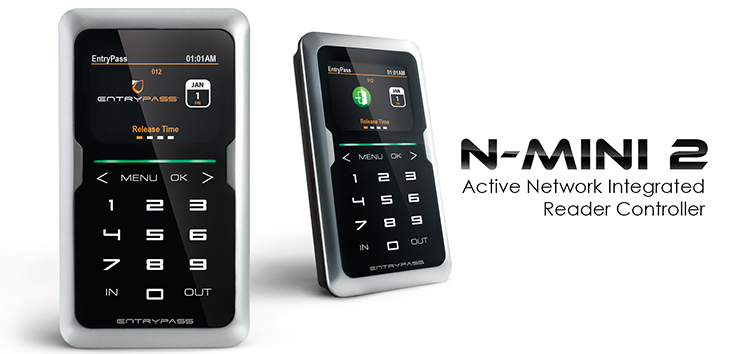

N-Mini 2
N-Mini 2
Dual Operation Mode (DOM) - provides an extremely easy reconfiguration method via the controller default operation mode.n-MiNi2 support dual-application environment, namely physical door access control and advanced time clock.
Dynamic Storage Allocation (DSA) - to modify the factory preset card holder and event storage database whenever necessary for personalized configurations.
User Counting - system administrator can easily configure the controller to allow a specific amount of card holders that can enter a restricted area.
The n-MiNi2 is the next generation- high-reliability, high-efficiency and fully integrated dual applications controller with integrated reader.Display and keypad targeted for various physical access control deployment with a card capacity of 30,000 users and 80,000 event memory.
Made to endure tough aspects of the environment like dust, moisture and water, it embodies a fast touch-enabled keypad and was designed to minimize wear and tear with a unique scratch-resistant layer.
N-Mini
N-Mini
Active Transmi - N-MiNi actively transmit the current event data to host server as it happens, meaninevent get delivered instantly and can be act upon faste.
Active Diagnose - When detected error, system will prompts user via the onboard graphical LCD. Installer information can be loaded prior activating the system. No more worries on who to call when system breaks down.
Feature Highlight- 10,000 Card Holder / 20,000 event buffer memory, Intuitive display menu.
Access Mode- Card Only / Card + Pin / Buddy ModeSingle Door Application
Active Search Newly improved card searching algorithm, now card authentication only takes a fraction of second even when the memory is full.

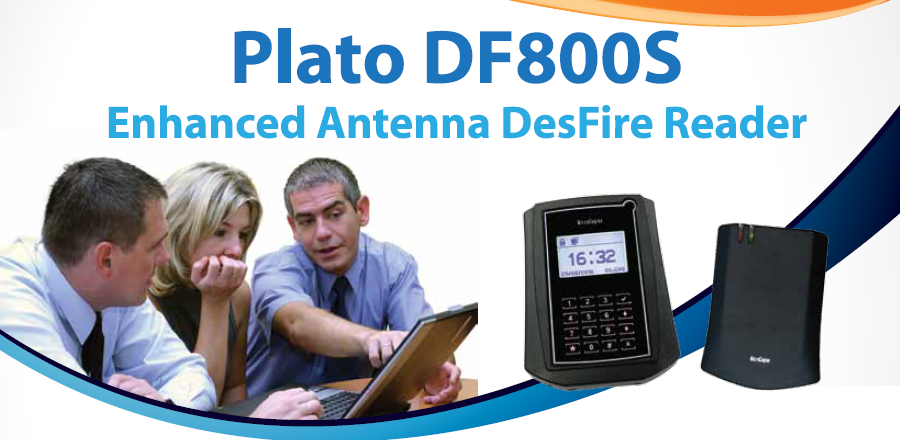

DesFire Plato Readers
DesFire Plato Readers
Touch Sense Keypad & LCD
32 bit Processor for Faster Reading.
Built In Tamper Switch.
Card Type - Mifare DesFire / DesFire Ev1
Encrypted Card ID - Yes. (In Encrypted File Securedly Created in the Card)
Card Serial Number (CSN) - Read Together with Card ID
Plato Readers
Plato Readers
Slim and stylish design
Weather proof
EM/ Mifare CSN / CEPAS / Mifare Sector Reading
Better security with 16-digit card numbers
Touch Sense keypad
2 stylish LED indicators
Built-in buzzer

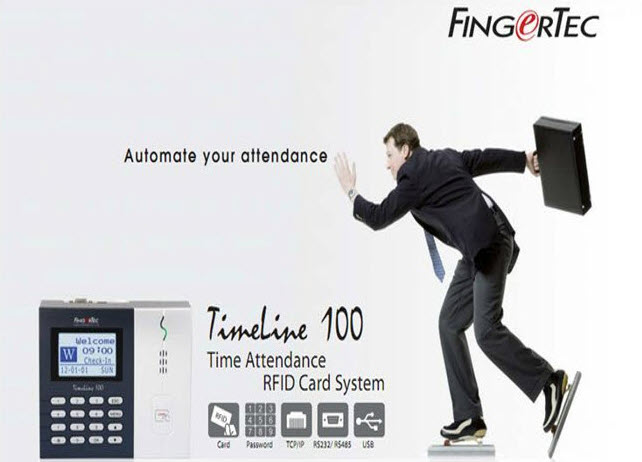

Timeline 100
Timeline 100
Supersized Capacity - Get up to 10,000 card templates and 30,000 transaction logs
Data Management Simplified - is equipped with TCP/IP connectivity and when that is not available, a USB flash port can be used to transfer transaction logs into your computer.
Short Message Display - Communicate with your employee by personalizing a short message to be displayed at the terminal when they verify. The message can be directed to an individual or to a group of staff.
Combine Verification Methods - Opt for the combination of verification methods to secure your workplace further. Choose the card and password verification with the TimeLine 100 for tighter security.
s-Kadex
s-Kadex
Petite but Packs a Punch - has enough processing power to ensure quick verification times of less than one second and enough memory to store a whopping 30,000 transactions.
Easy Installation - takes minimal effort to install because of the device’s simplicity, and coupled with its compact size, can be easily placed in any location of your choice.
Completely Stand-alone Device - can be used as a standalone device for simple access management.
Simple Management & Enrollment - simple outlook is complimented with a simple management system. Just key in your administrator password to start enrolling or deleting data.
Clear-cut Notification of Events - A buzzer and LEDs are built-in in s-Kadex to provide clear audio and visual notifications during any events that may occur at the device.
Combine Your Verification Methods - can accept four different combinations of card (either RFID or MiFARE) or password verification methods according to your preference.
EK748
EK748
It comes with a high precision 12-key touch sense keypad and a 128 x 32 graphical LCD display
The enclosure’s robust construction makes it ideal for high traffic indoor use.
Transmit Frequency - 125Khz (EM), 13.56MHz (Mifare)
Indicator - LCD and buzzer
Reading Range - 3cm to 8cm
Operating Voltage - 5 VDC/12 VDC
AR725E
AR725E
DirectPC technology allow direct interface to PC
Alarm function - tamper / door open too long / force unauthorized entry.
Built in 1 relay output for automation - Relay is activated according to duty time or pre-set weekly schedule.
Support more accurate duty based time attendance function.
Auto display current duty name according to the pre-set duty start time.
Support door auto-relock.
Built in watch dog to prevent system from halting.

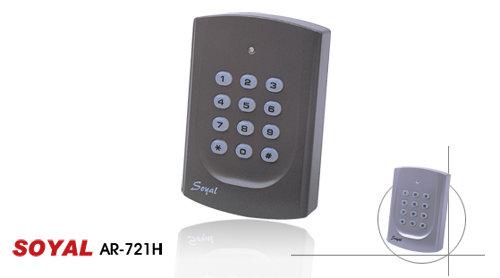

AR721H
AR721H
Built in 2-in-1 combo function
Standalone mode: Single door reader with directPC
Networking mode: Reader only ( passing all data back to AR716 interface for further operation).
Reader auto-detect standalone / networking mode.
Auto display current duty name according to the pre-set duty start time.
Support door auto-relock.
Built in watch dog to prevent system from halting.
